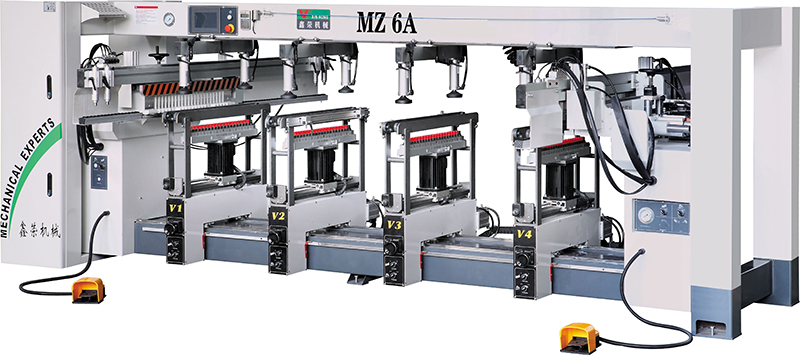

MZ 6A Six- range carpenter drilling machine
Instructions：
Drilling diameter：
| φ15-φ35mm | Spindle speed： | 2840r/ min |
| Max. drilling depth： | 60mm | Total number of bit： | 21×6 |
| Max. processing pitch： | L×B=2500×640mm | Total power： | 9kw |
| Min. processing pitch： | L×B=130×32mm | Dimensions： | 4400×2500×1560mm |
| Drilling joint diameter： | 10m | Total weight： | 1650kg |
